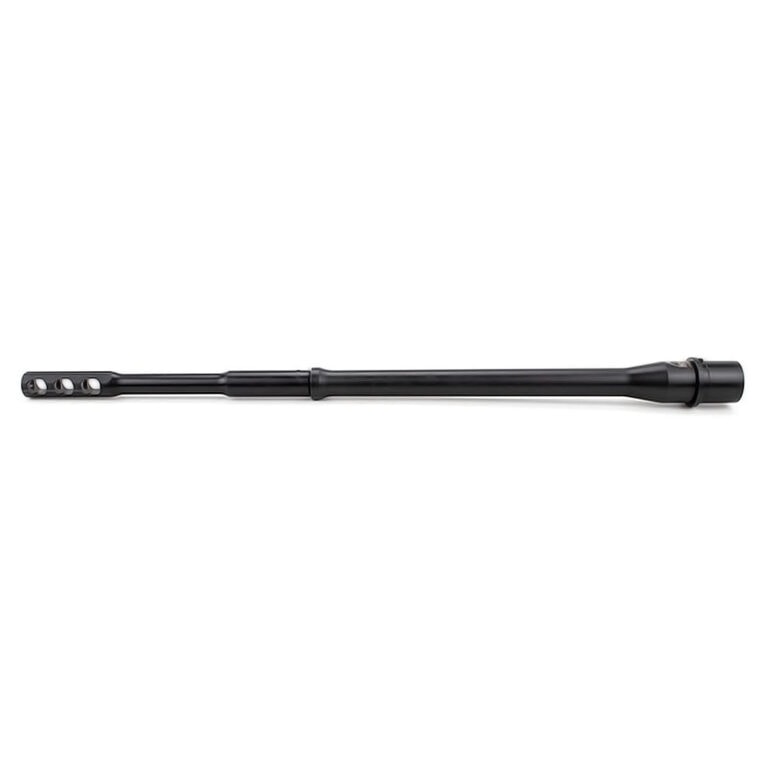

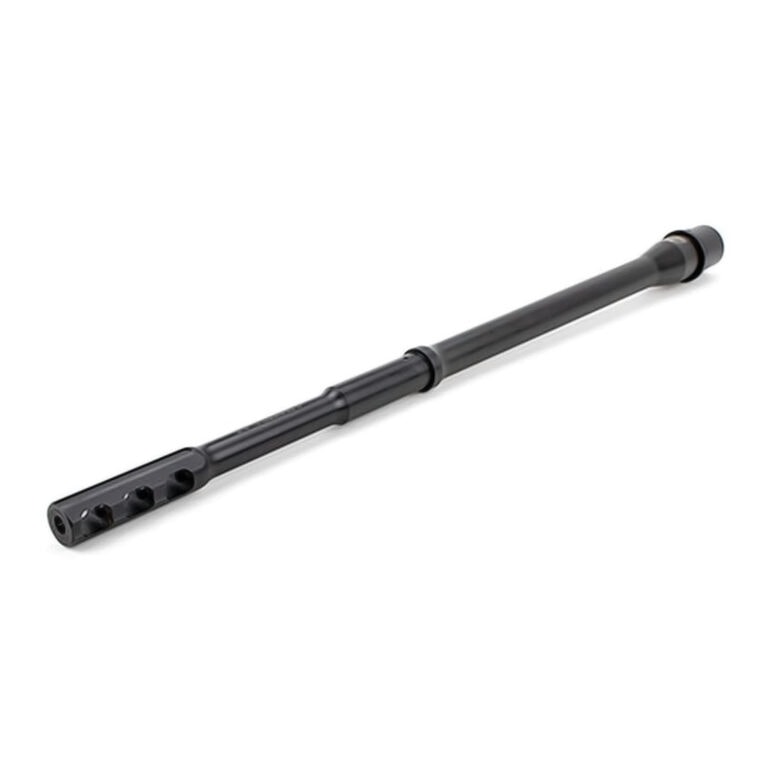

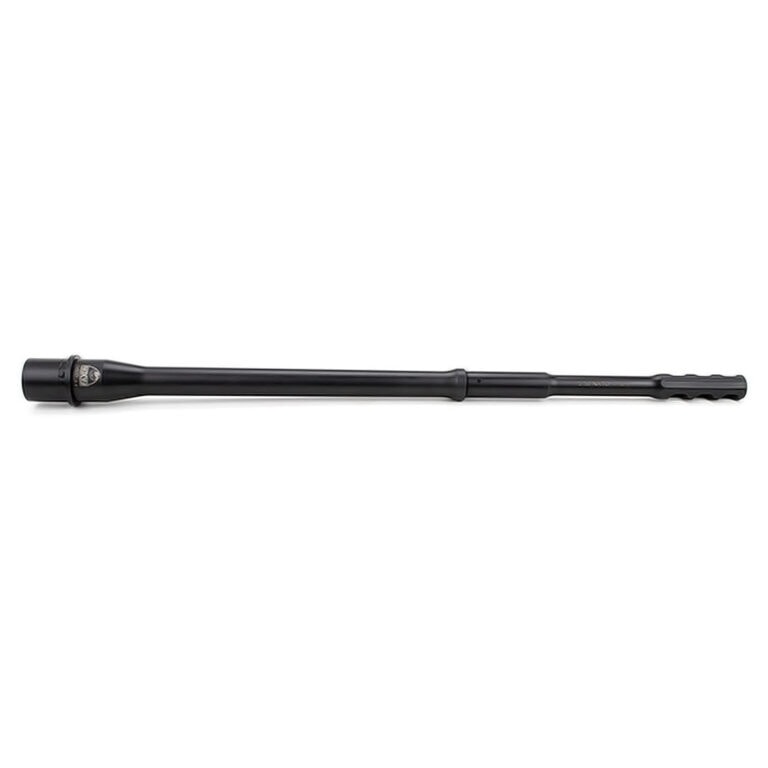

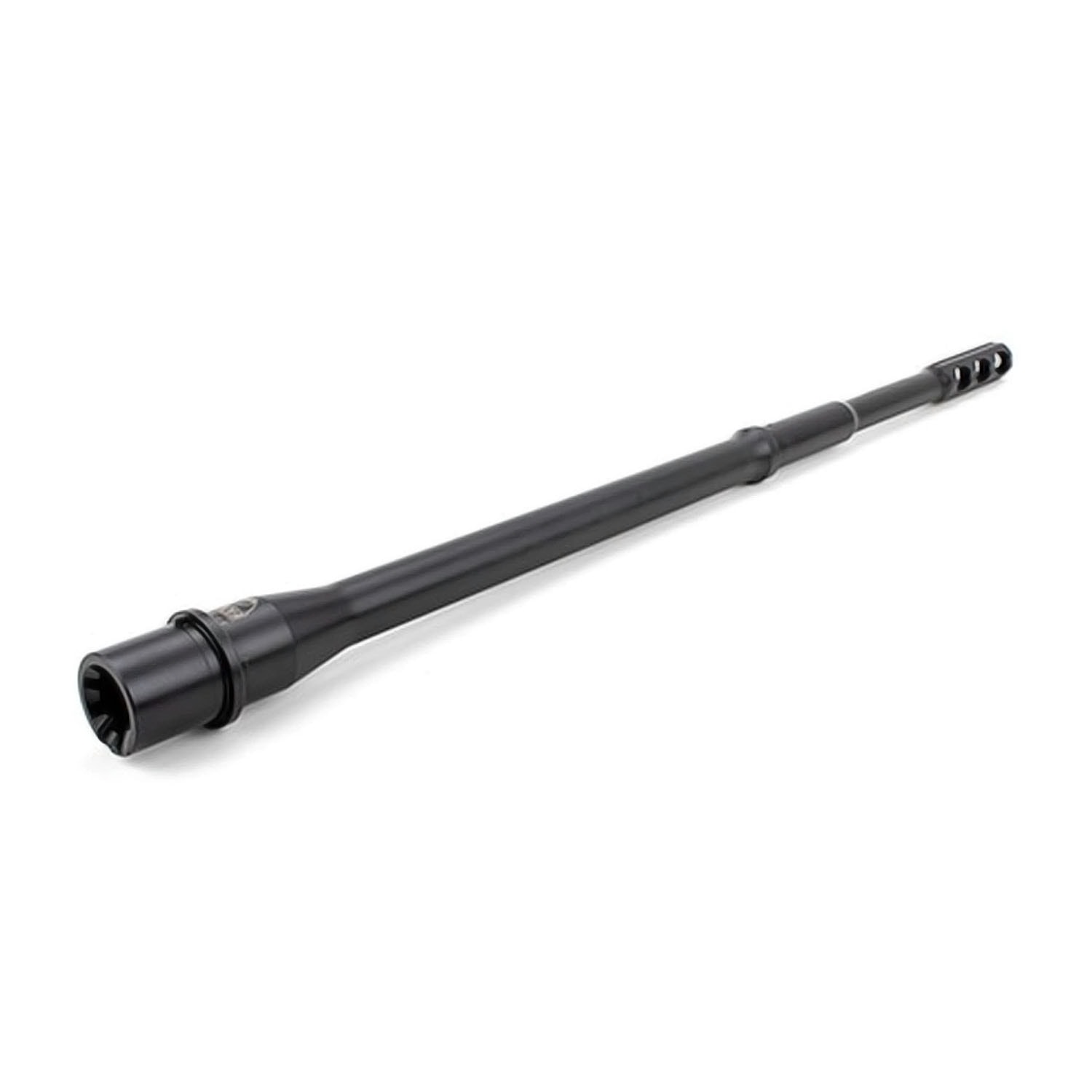

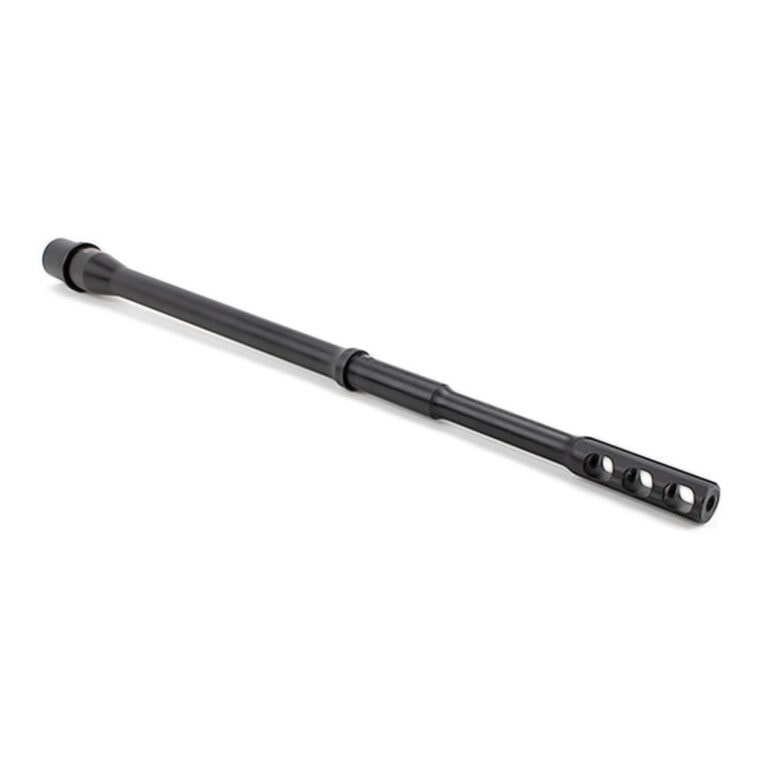

Discontinued: Faxon Firearms 16 inch Gunner Profile Barrel with Integral Slim 3-Port Muzzle Brake – 5.56 NATO

SKU: 15A58M16NGQ-IMDB

Out of Stock

Join the waitlist to be emailed when this product becomes available

Orders will Ship within 1 Business Day
Backed by the Faxon Firearms Warranty!
TOP ADD-ON'S
AT3™ AR 15 Gas Tube & Carbine Gas Tube Length

AT3 Stainless Gas Tube with Roll Pins - Midlength

$13.99
Faxon Firearms Ultra Low-Profile Gas Block - Three Set Screws

Faxon Firearms Ultra Low-Profile Gas Block - .625"

$34.19

This product is discontinued. Check out our full selection of Faxon Barrels and more here!

Expect Maximum Versatility, Heat Resistance, & Mitigation Of Barrel Whip

The Faxon Firearms 16 inch Gunner Barrel is the combination of the two best-performing barrel profiles. It offers the durability of a Government profile with the weight savings and maneuverability of a Pencil profile.

The gunner barrel’s profile helps in limiting fatigue by placing the balance of the rifle back towards the shooter’s body so users can ensure maximum versatility while shooting, training, or hunting all day long.

4150 CMV Stainless Steel With A QPQ Nitride Finish

The Faxon Firearms 16 inch Gunner Barrel is built from tough 4150 CMV stainless steel with a QPQ nitride finish inside and out for enhanced resistance to corrosion and wear for an extended lifetime of use. It is fully stress-relieved, air-gauge tested and 11-degree target crowned to ensure durability and superior accuracy.

This gunner barrel model is designed with an integral slim 3-port muzzle brake so you won’t have to find a capable gunsmith to pin & weld your muzzle device to the barrel.

Features:

  • Lightweight: The no.1 choice of major brands in terms of balanced weight and performance. Expect superior accuracy minus the weight!
  • Accurate: Fully stress relieved, air-gauge tested and 11-degree target crowned to ensure exceptional accuracy.
  • Tough Finish: Built from 4150 CMV Steel with QPQ Nitride Finish from the inside and out, this barrel is as strong and tough compared to other expensive brands.

Specifications:

  • Barrel Material: 4150 CMV
  • Barrel Type: Button Rifled
  • Barrel Caliber: 5.56
  • Barrel Twist: 1:8
  • Barrel Length: 14.5″ Rifled, 16″ Legal Length w/ Integral Muzzle Device
  • Barrel Profile:  Gunner
  • Muzzle Device: Integral Slim 3 Port Muzzle Brake
  • Barrel Gas System: Mid
  • Inside Finish: Nitride
  • Outside Finish: Nitride
  • Muzzle Thread: 1/2-28
  • Gas Block Diameter: .625″
  • Gas Block Journal Length: 1.9″
  • Barrel Extension: M4
  • Weight: 1.35 lbs
  • Magnetic Particle Inspected
  • 11-degree Target Crown

Specifications:

Caliber5.56 NATO/.223 Remington
Barrel Length16 inches
Barrel Twist Rate1:8 inches
Barrel Material4150 CMV
Muzzle ThreadsIntegral Muzzle Device
Barrel FinishBlack Nitride
Gas Block Size.625″ Gas Block
FitAR-15
Barrel ProfileGunner
Barrel Gas SystemMidlength
Gas Block Journal Length1.9 inches
Barrel ExtensionM4
Weight21.6 ounces
